CAT Part No. 446-5409 · In stock
CAT Electric Fuel Transfer Pump 24V 446-5409
The CAT 446-5409 is a genuine Electric Fuel Transfer Pump 24V. G Service Power has this unit brand new and boxed, in stock in the UK at £95, ready for next-day worldwide dispatch. Call +44 7951 632187.

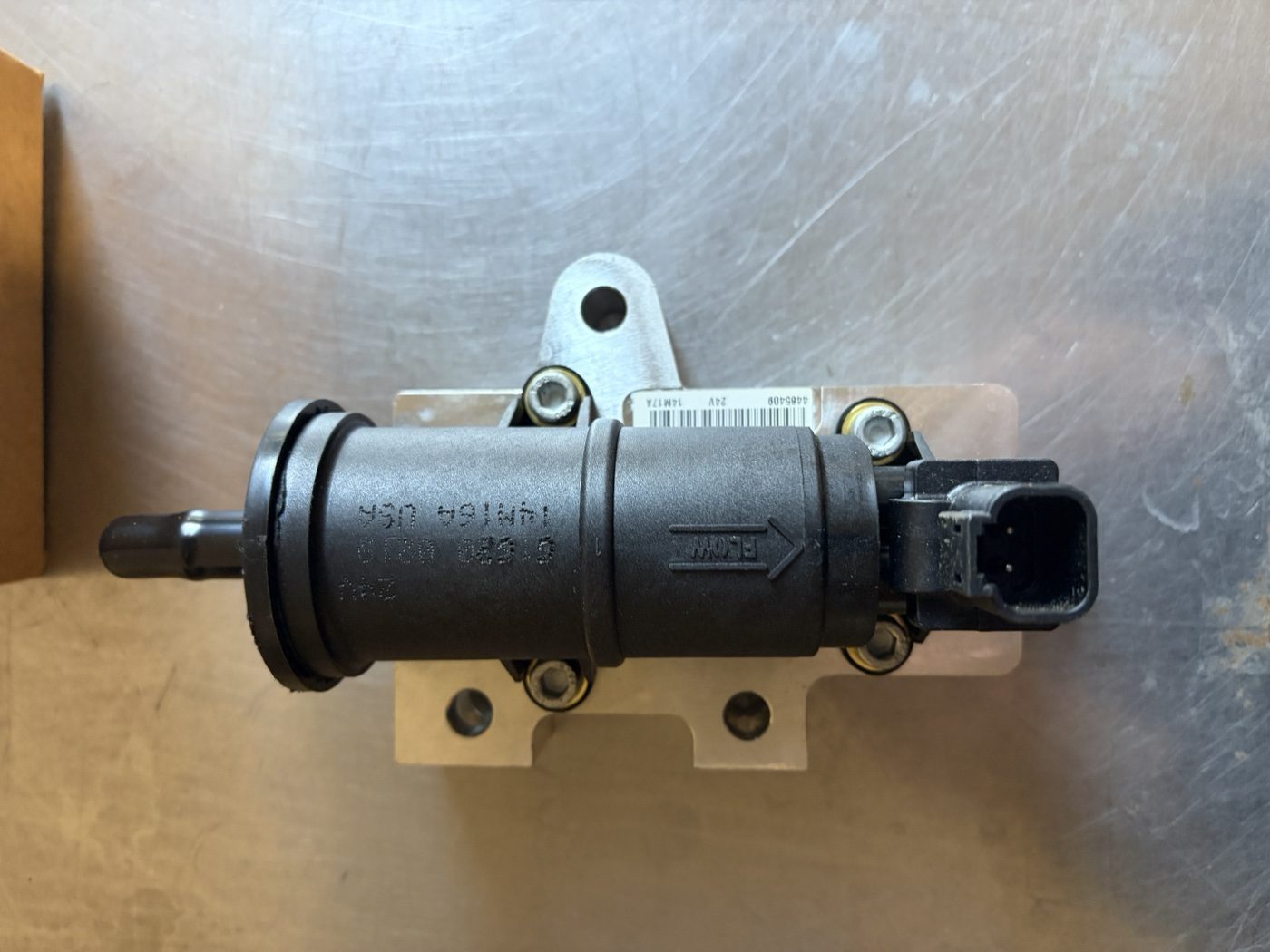

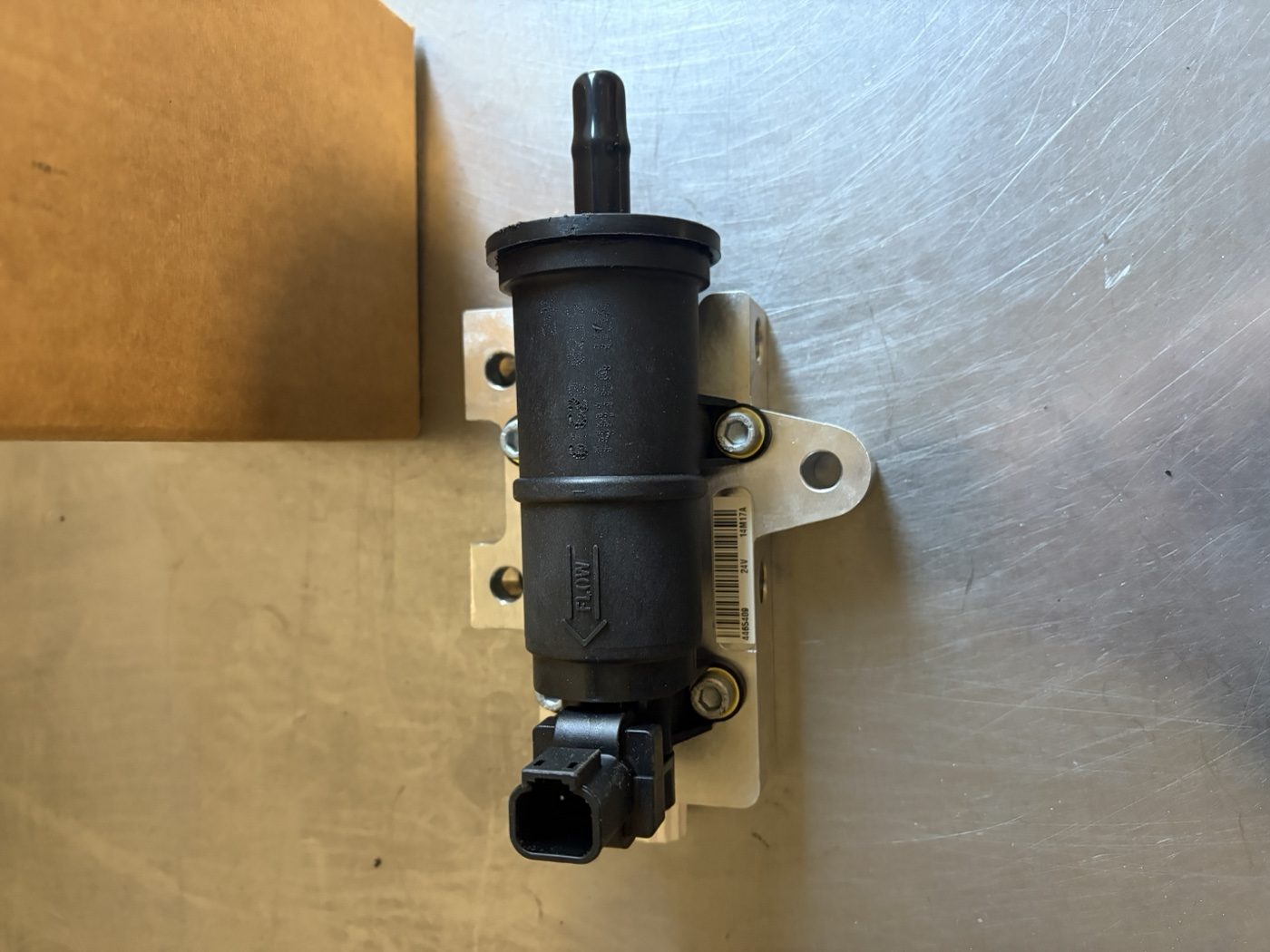

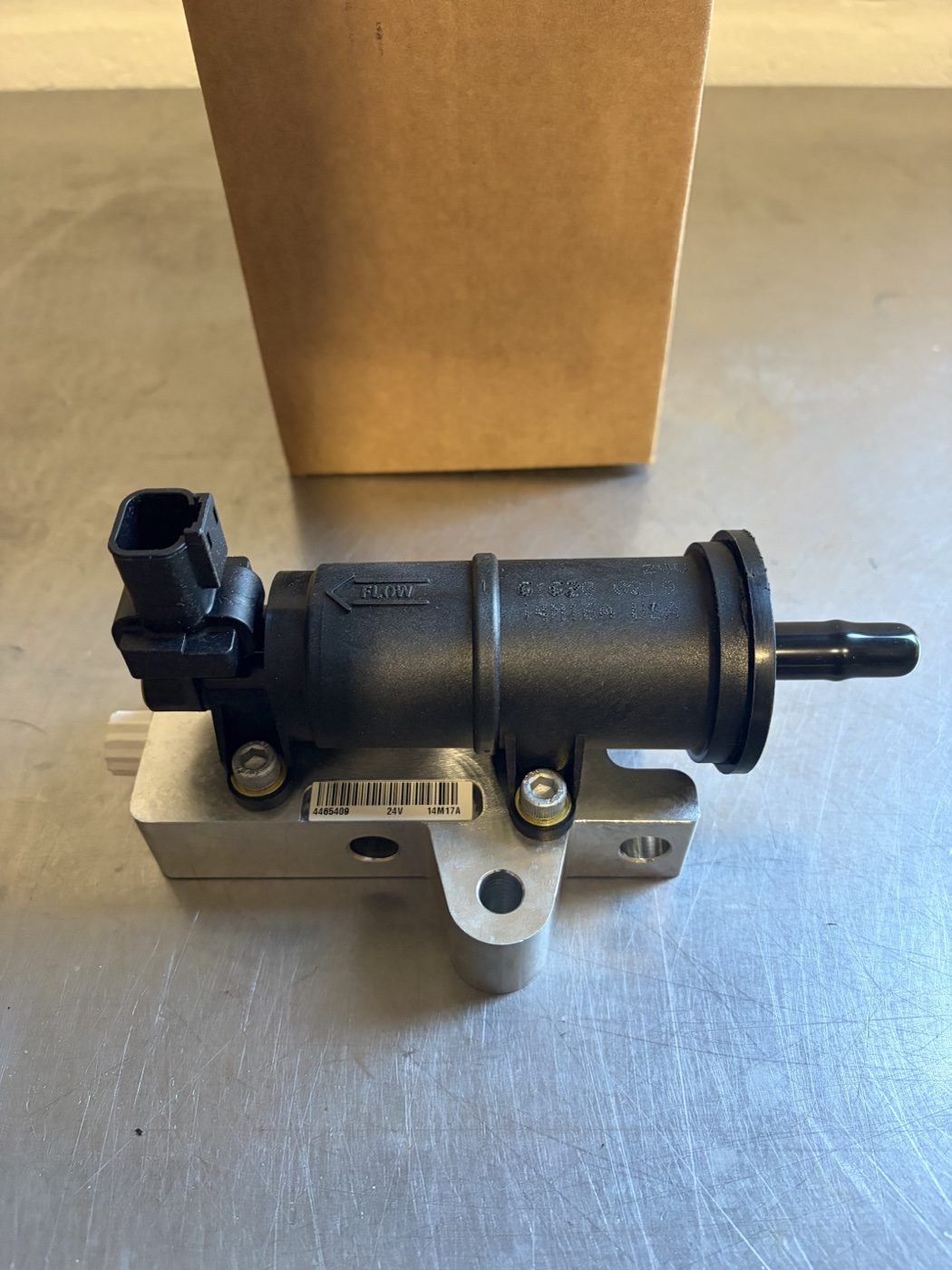

Actual unit photographs. Further photos and video on request.
Specification
| Part number (MPN) | 446-5409 |
|---|---|
| Manufacturer | CAT |
| Product | Electric Fuel Transfer Pump 24V |
| Condition | Brand new — never fitted, boxed |
| Also marked | 4465409 · 24V · 14M17A (pump label); 14M16A USA on the body |
| Box label | 4465409 14L26A |
| Component | Electric fuel transfer / priming pump on manifold block |
| Voltage | 24 V DC |
| Engine model | Cat C4.4 / C6.6 / C7.1 (per Cat catalogue) |
| Application | 312E–324E excavators, 924K–962K loaders, D6N (per Cat catalogue) |
| Mounting | Aluminium manifold block with bracket, two fixing bolts |
| Country of origin | USA (moulded on the pump body) |
| Location | UK — ready to ship worldwide |
| Condition | Brand New |
| Availability | In stock — next-day worldwide dispatch |
| Price | £95 ex works UK, excl. VAT |
| Reference | GX-446-5409 |
Compatibility
The CAT 446-5409 fits CAT C4.4, C6.6, C7.1, MX35, 312E–335F excavators, M314F–M323F wheeled excavators, 924K / 930K / 938K / 950K / 962K / 966F wheel loaders, D5, D6N, D6K2 track-type tractors, 814 / 815 / 816 compactors, 120M 2 motor grader, AP500F–AP1055F and BG1000E / BG1055E asphalt pavers and Forestry: 2384–2484 knuckleboom loaders, 2570C / 2670C and 563C / 573C feller bunchers, 559–579. Related part numbers: T417445 (cross-reference, Perkins).
Compatible engines
| Make | Model | Notes |
|---|---|---|
| CAT | C4.4 | industrial engine and machine engine |
| CAT | C6.6 | industrial engine |
| CAT | C7.1 | industrial engine and mobile hydraulic power unit |
| CAT | MX35 | industrial engine |
| CAT | 312E–335F excavators | E and F series incl. 320, 320 GC, 323, 329, 330, 335, 538, 548, 558 |
| CAT | M314F–M323F wheeled excavators | also MH3022 / MH3024 / MH3026 material handlers |
| CAT | 924K / 930K / 938K / 950K / 962K / 966F wheel loaders | |
| CAT | D5, D6N, D6K2 track-type tractors | also 953 / 953K / 963 / 963K track loaders |
| CAT | 814 / 815 / 816 compactors, 120M 2 motor grader | also CP-533E, CS-433E, CS-533E vibratory compactors |
| CAT | AP500F–AP1055F and BG1000E / BG1055E asphalt pavers | |
| CAT | Forestry: 2384–2484 knuckleboom loaders, 2570C / 2670C and 563C / 573C feller bunchers, 559–579 |
Interchangeable & related part numbers
| Part number | Brand | Relation | Notes |
|---|---|---|---|
| T417445 | Perkins | Cross-reference | Perkins 24 V primary fuel lift pump for the 1204 / 1206 (Perkins twins of the C4.4 / C6.6 / C7.1), per aftermarket listings |
24 V DC with a 2-pin Deutsch DT connector and M16 outlet; the 12 V twin is 446-5408 and is not interchangeable. Fitment and interchange data is compiled from manufacturer catalogues and cross-reference listings and can change at engine serial-number breaks. Quote your engine serial number and existing part number when you call and we will confirm before dispatch.
About this part
The CAT Electric Fuel Transfer Pump 24V — part number 446-5409 is a genuine CAT part, supplied at £95 by G Service Power. It is brand new, held in UK stock and dispatched next day, worldwide. Fits 312E–324E excavators, 924K–962K loaders, D6N (per Cat catalogue).
Genuine Caterpillar electric fuel transfer pump, part number 446-5409 (Perkins equivalent T417445), a 24 volt DC lift pump supplied on its aluminium manifold block and bracket — the pump label reads 4465409 / 24V / 14M17A, the body is moulded 14M16A USA and the flow arrow is cast into the housing (see photos). The electric transfer pump draws fuel from the tank and feeds it through the filters to the high-pressure pump at low pressure, and primes the system after a filter change or a run-dry, so it is the part replaced when the engine is hard to start, loses power under load or will not prime, or when the pump runs noisily or not at all. Cat lists 446-5409 for the C4.4, C6.6 and C7.1 engines in 312E to 324E excavators, 924K to 962K wheel loaders, D6N dozers and similar machines. This is a genuine Cat part in its original box, not one of the copies sold under the same number. Condition: brand new, never fitted. Price £165 plus VAT. Please confirm against your machine or engine serial number before ordering. In UK stock — call +44 7951 632187 or message on WhatsApp for shipping and availability.
Compatibility: fits CAT C4.4, C6.6, C7.1, MX35, 312E–335F excavators, M314F–M323F wheeled excavators, 924K / 930K / 938K / 950K / 962K / 966F wheel loaders, D5, D6N, D6K2 track-type tractors, 814 / 815 / 816 compactors, 120M 2 motor grader, AP500F–AP1055F and BG1000E / BG1055E asphalt pavers and Forestry: 2384–2484 knuckleboom loaders, 2570C / 2670C and 563C / 573C feller bunchers, 559–579 — the full list of engines and interchangeable part numbers is on the Compatibility tab. Confirm against your engine serial number before ordering, or call us and we will check it with you.
Part number & references
For sale from UK stock. Quote any of these references when you call.
| Part number | 446-5409 — also listed as 4465409, Caterpillar 446-5409, Perkins 446-5409 |
|---|---|
| Brand | CAT (also Caterpillar) — also sold under Perkins |
| Alternate part number | CAT Perkins T417445 (per cross-reference) |
| Engine model | Cat C4.4 / C6.6 / C7.1 |
Frequently asked questions
- Which engines does the CAT 446-5409 fit?
- It fits CAT C4.4, C6.6, C7.1, MX35, 312E–335F excavators, M314F–M323F wheeled excavators, 924K / 930K / 938K / 950K / 962K / 966F wheel loaders, D5, D6N, D6K2 track-type tractors, 814 / 815 / 816 compactors, 120M 2 motor grader, AP500F–AP1055F and BG1000E / BG1055E asphalt pavers and Forestry: 2384–2484 knuckleboom loaders, 2570C / 2670C and 563C / 573C feller bunchers, 559–579. 24 V DC with a 2-pin Deutsch DT connector and M16 outlet; the 12 V twin is 446-5408 and is not interchangeable. Fitment can change at engine serial-number breaks, so quote your engine serial number when you call and we will confirm it.
- Which part numbers are interchangeable with 446-5409?
- The related numbers are T417445 (cross-reference, Perkins). The Compatibility tab states each number's relation to this part — a supersession or cross-reference is the same part or its direct replacement; a marking or kit number is not a separate part.
- What is the CAT 446-5409?
- Genuine Caterpillar electric fuel transfer pump, part number 446-5409 (Perkins equivalent T417445), a 24 volt DC lift pump supplied on its aluminium manifold block and bracket — the pump label reads 4465409 / 24V / 14M17A, the body is moulded 14M16A USA and the flow arrow is cast into the housing (see photos).
- Is the 446-5409 new or used?
- This unit is brand new, supplied from UK stock.
- How much is it and how do I buy it?
- £95 ex works UK, excl. VAT. Call G Service Power on +44 7951 632187 or message on WhatsApp.
- Do you ship worldwide?
- Yes. In-stock items are dispatched next day and shipped worldwide with export packing and documentation.
