Cummins Part No. 3640732 · In stock

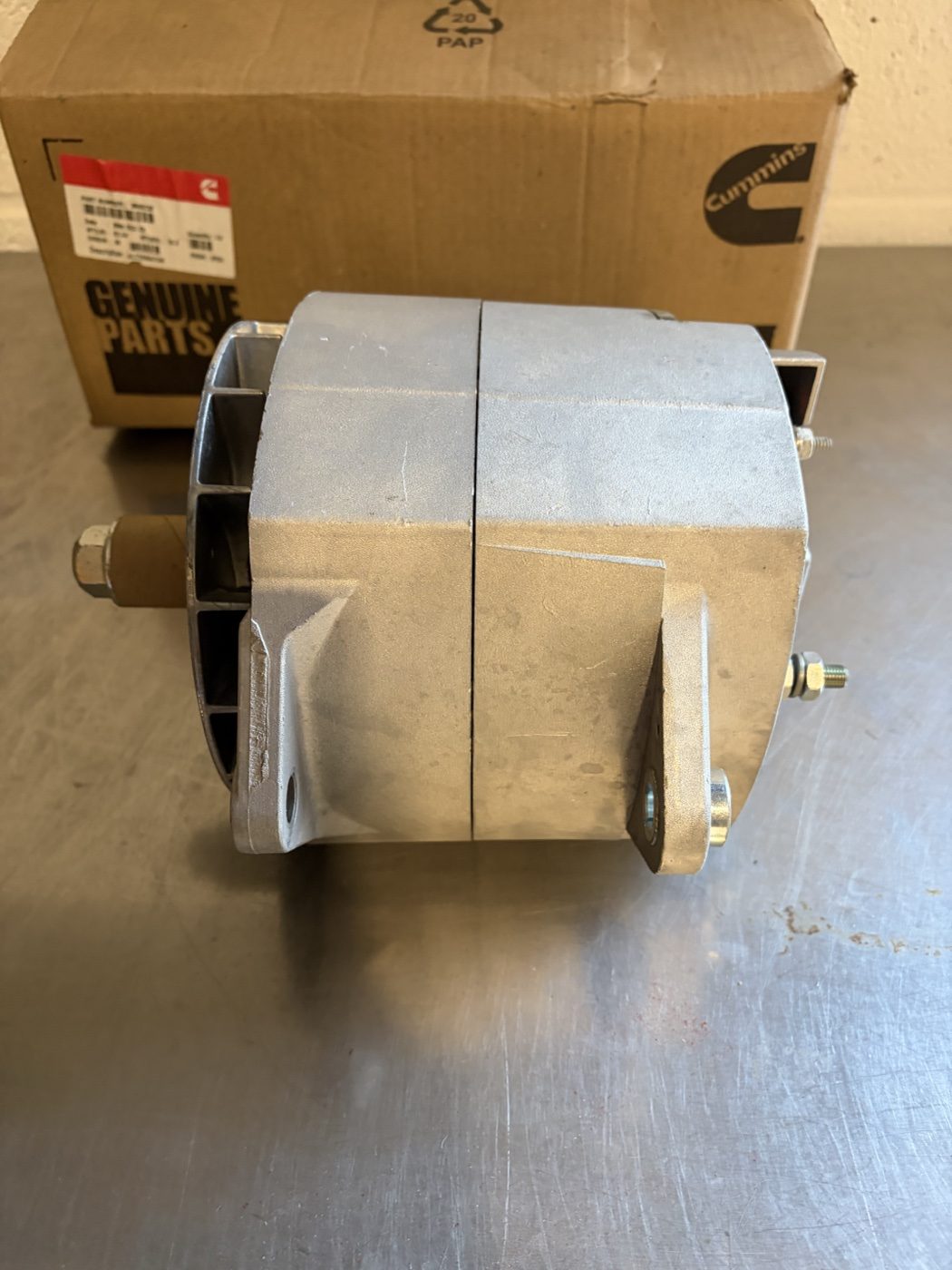

Cummins Leece-Neville Alternator 24V 150A 3640732
The Cummins 3640732 is a genuine Leece-Neville Alternator 24V 150A. G Service Power has this unit brand new and boxed, in stock in the UK at £549, ready for next-day worldwide dispatch. Call +44 7951 632187.
Actual unit photographs. Further photos and video on request.
Specification
| Part number (MPN) | 3640732 |
|---|---|
| Manufacturer | Cummins |
| Product | Leece-Neville Alternator 24V 150A |
| Also marked | Prestolite Leece-Neville Model 8RL3028 · Sales No. 105-408 (plate) |
| Alternate part number | 4372405 (current Cummins supersession, per catalogue) |
| Output | 24 V · 150 A |
| Manufacturer | Prestolite Electric (Leece-Neville) for Cummins Engine Co. |
| Engine model | Cummins KTA38 / KTA50 / QSK38 / QSK50 (per cross-reference) |

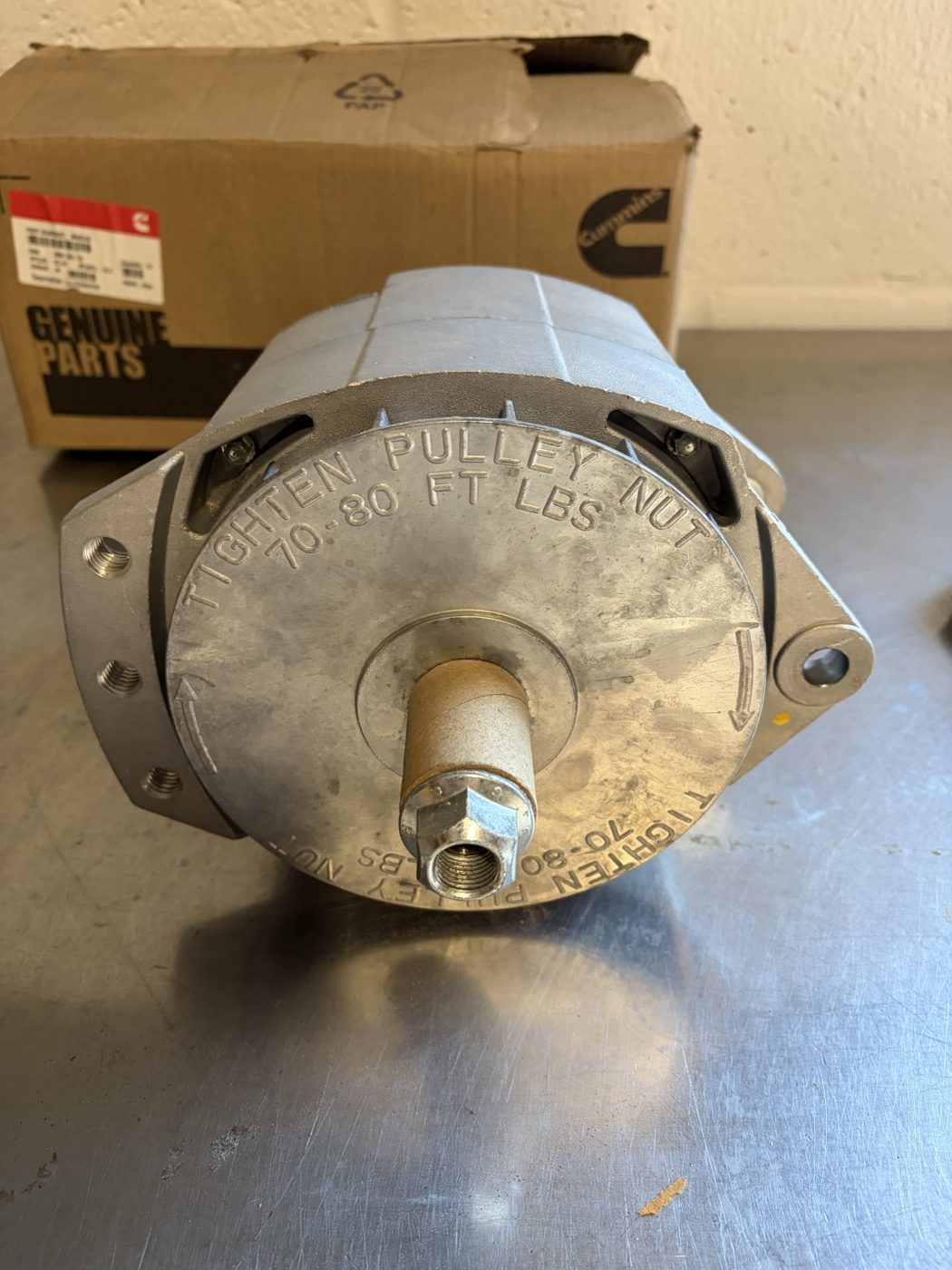

| Pulley nut torque | 70–80 ft lb (cast into the drive end) |

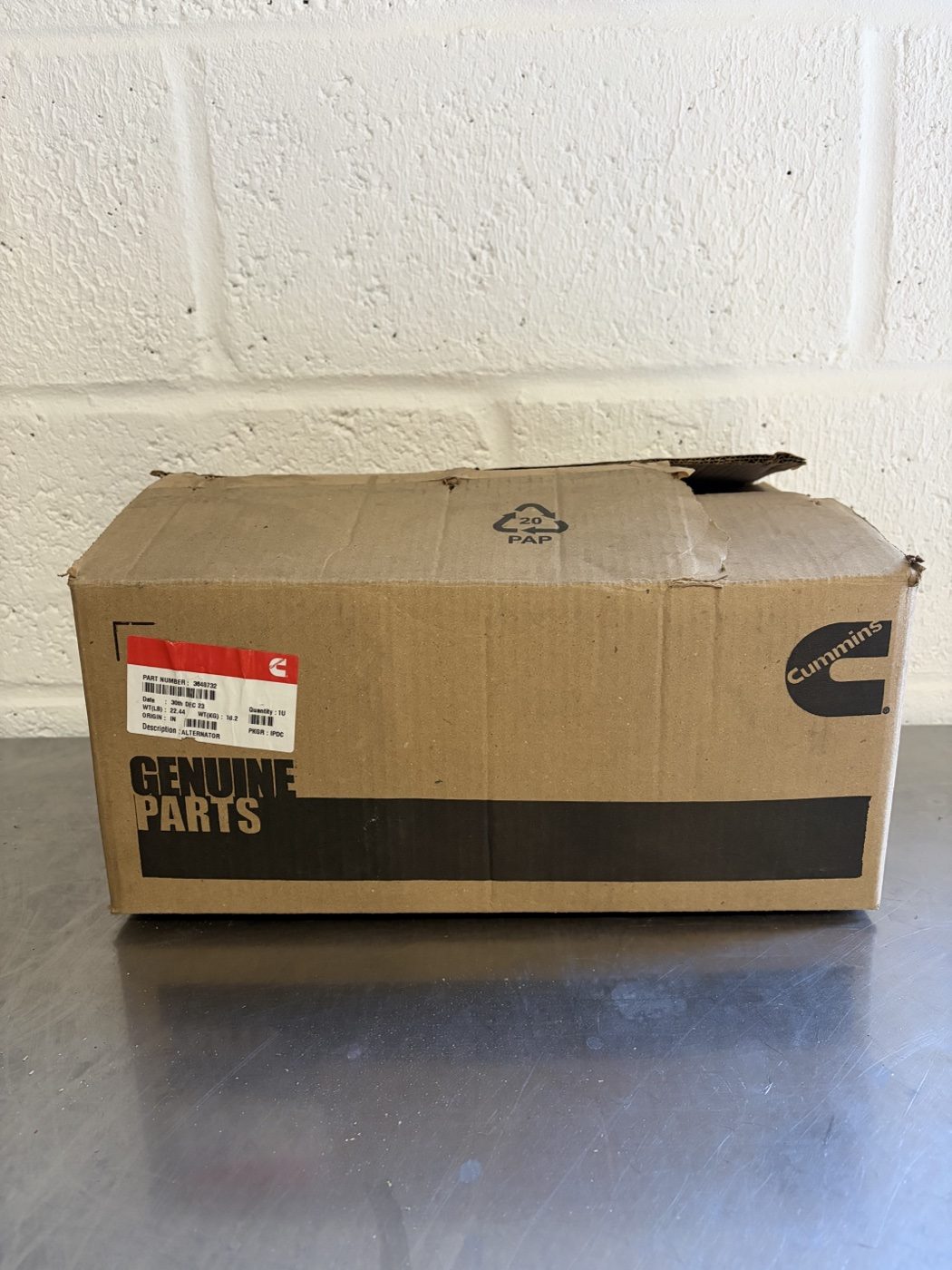

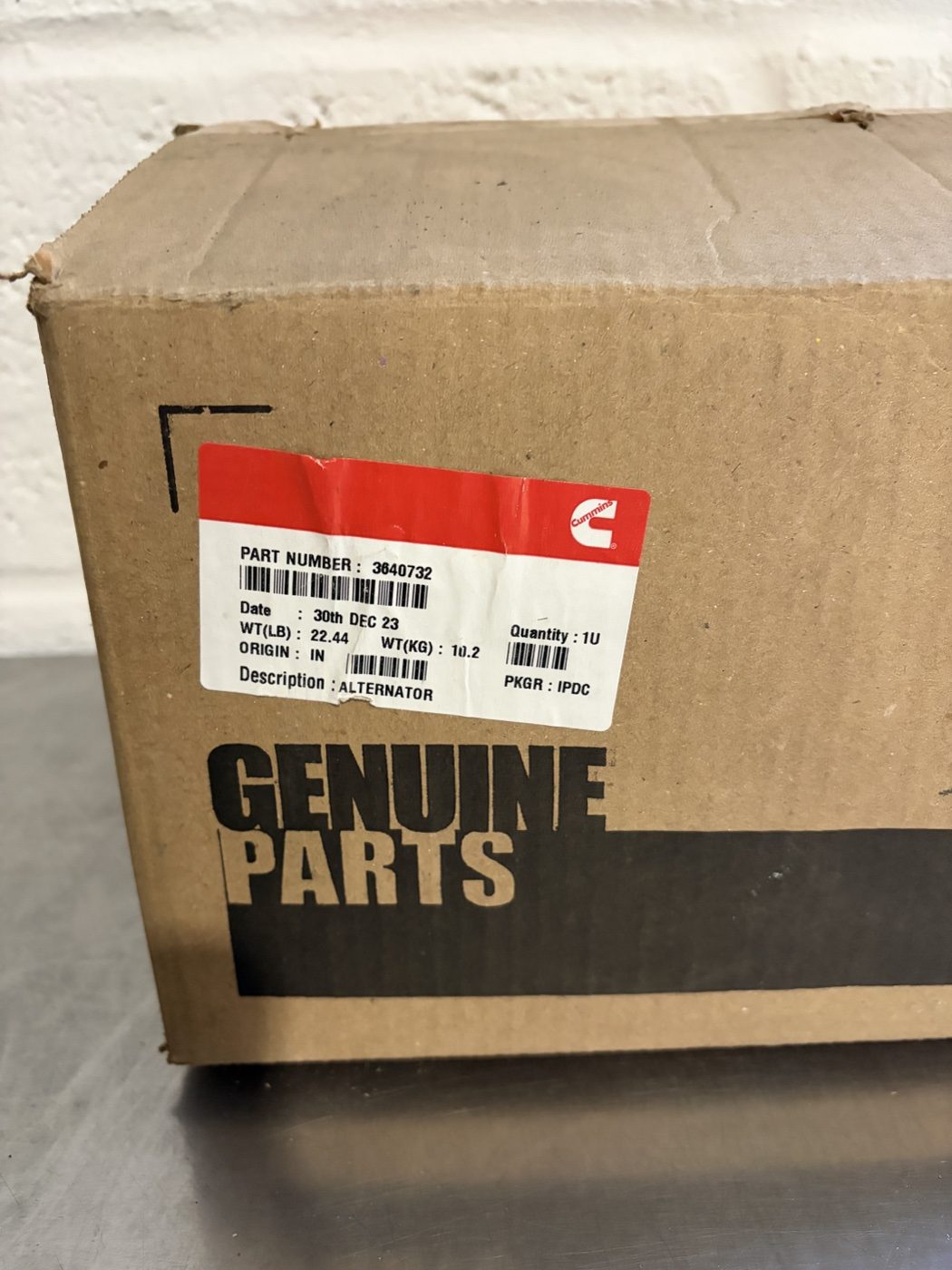

| Box | Cummins Genuine Parts, dated 30 Dec 23, 10.2 kg |
| Condition | Brand new — unused, boxed |
| Country of origin | India (box label) |
| Location | UK — ready to ship worldwide |
| Condition | Brand New |
| Availability | In stock — next-day worldwide dispatch |
| Price | £549 ex works UK, excl. VAT |
| Reference | GX-3640732 |
Compatibility
The Cummins 3640732 fits Cummins KTA38 / QSK38 and Caterpillar Cat engines using 0R7942 / 1501935. Related part numbers: 4372405 (superseded by, Cummins), 8SC3068V (maker's own number, Prestolite / Leece-Neville), 8SC3068VC (maker's own number, Prestolite / Leece-Neville), 110-431 (maker's own number, Prestolite / Leece-Neville), 8RL3028 (marked on the part, Prestolite / Leece-Neville), 0R7942 / 1501935 (cross-reference, Caterpillar), 8SC3160V (cross-reference, Prestolite / Leece-Neville) and 11204021 / F042308015 / 90059201 (cross-reference, Mahle / Bosch / Wilson).
Compatible engines
| Make | Model | Notes |
|---|---|---|
| Cummins | KTA38 / QSK38 | per Diesel Parts Direct's listing of the 4372405 replacement |
| Caterpillar | Cat engines using 0R7942 / 1501935 | same alternator under Cat numbers, per cross-reference table |
Interchangeable & related part numbers
| Part number | Brand | Relation | Notes |
|---|---|---|---|
| 4372405 | Cummins | Superseded by | current Cummins number ('replaces old part number 3640732') |
| 8SC3068V | Prestolite / Leece-Neville | Maker's own number | Leece-Neville model, 24 V 150 A, 7/8 in shaft |
| 8SC3068VC | Prestolite / Leece-Neville | Maker's own number | variant replaced by the same unit |
| 110-431 | Prestolite / Leece-Neville | Maker's own number | Prestolite sales number (110431) |
| 8RL3028 | Prestolite / Leece-Neville | Marked on the part | integral voltage regulator model on the plate |
| 0R7942 / 1501935 | Caterpillar | Cross-reference | Cat numbers in the same cross-reference table |
| 8SC3160V | Prestolite / Leece-Neville | Cross-reference | listed as replaced by the same aftermarket unit |
| 11204021 / F042308015 / 90059201 | Mahle / Bosch / Wilson | Cross-reference | aftermarket equivalents |
Insulated-return (isolated ground), clockwise rotation, M8 B+ stud, no pulley supplied. Only KTA38 / QSK38 fitment is documented; the KTA50 / QSK50 alternator is listed as 5282841 / 4381504. Fitment and interchange data is compiled from manufacturer catalogues and cross-reference listings and can change at engine serial-number breaks. Quote your engine serial number and existing part number when you call and we will confirm before dispatch.
About this part
The Cummins Leece-Neville Alternator 24V 150A — part number 3640732 is a genuine Cummins part, supplied at £549 by G Service Power. It is brand new, held in UK stock and dispatched next day, worldwide.

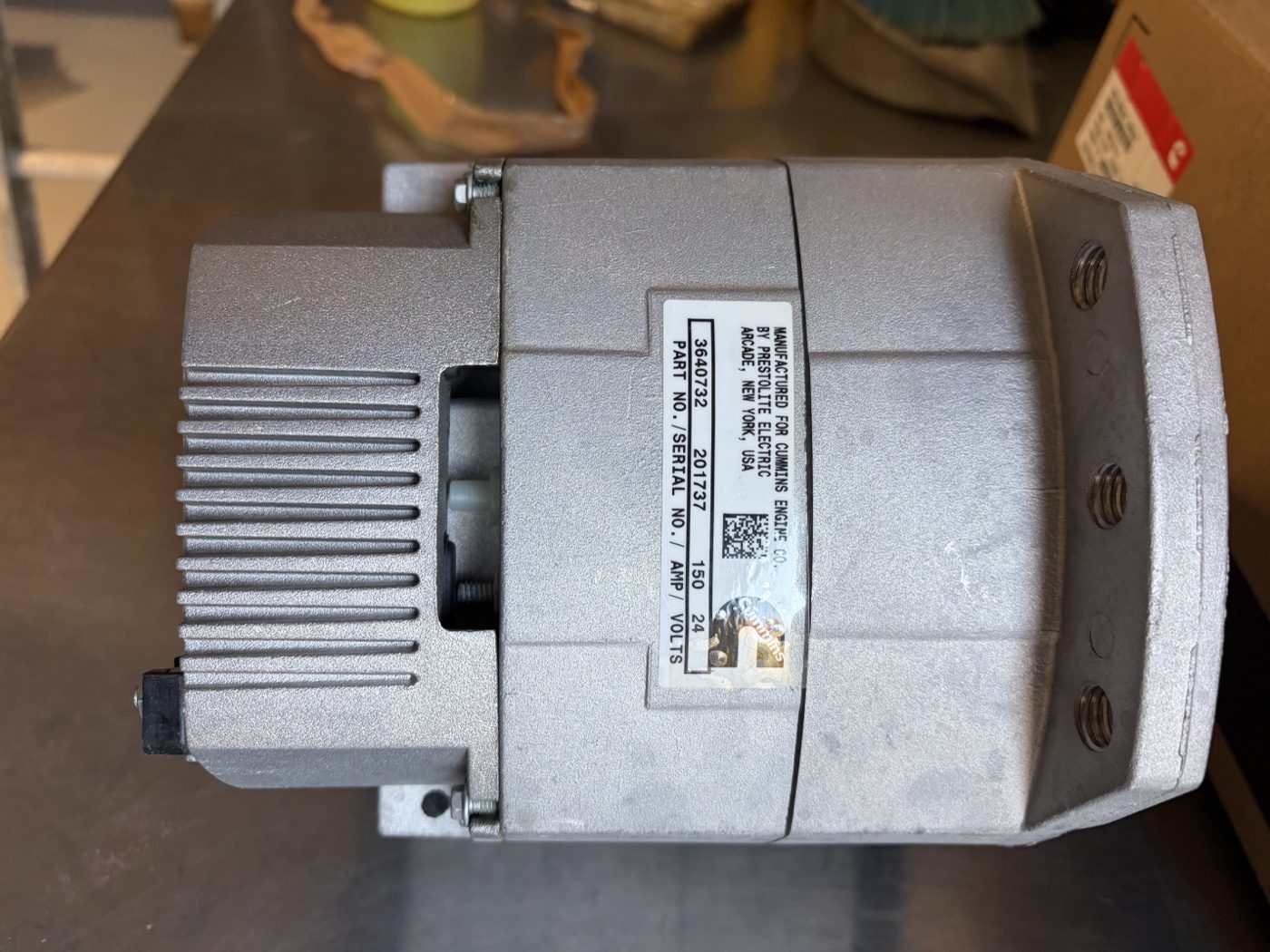

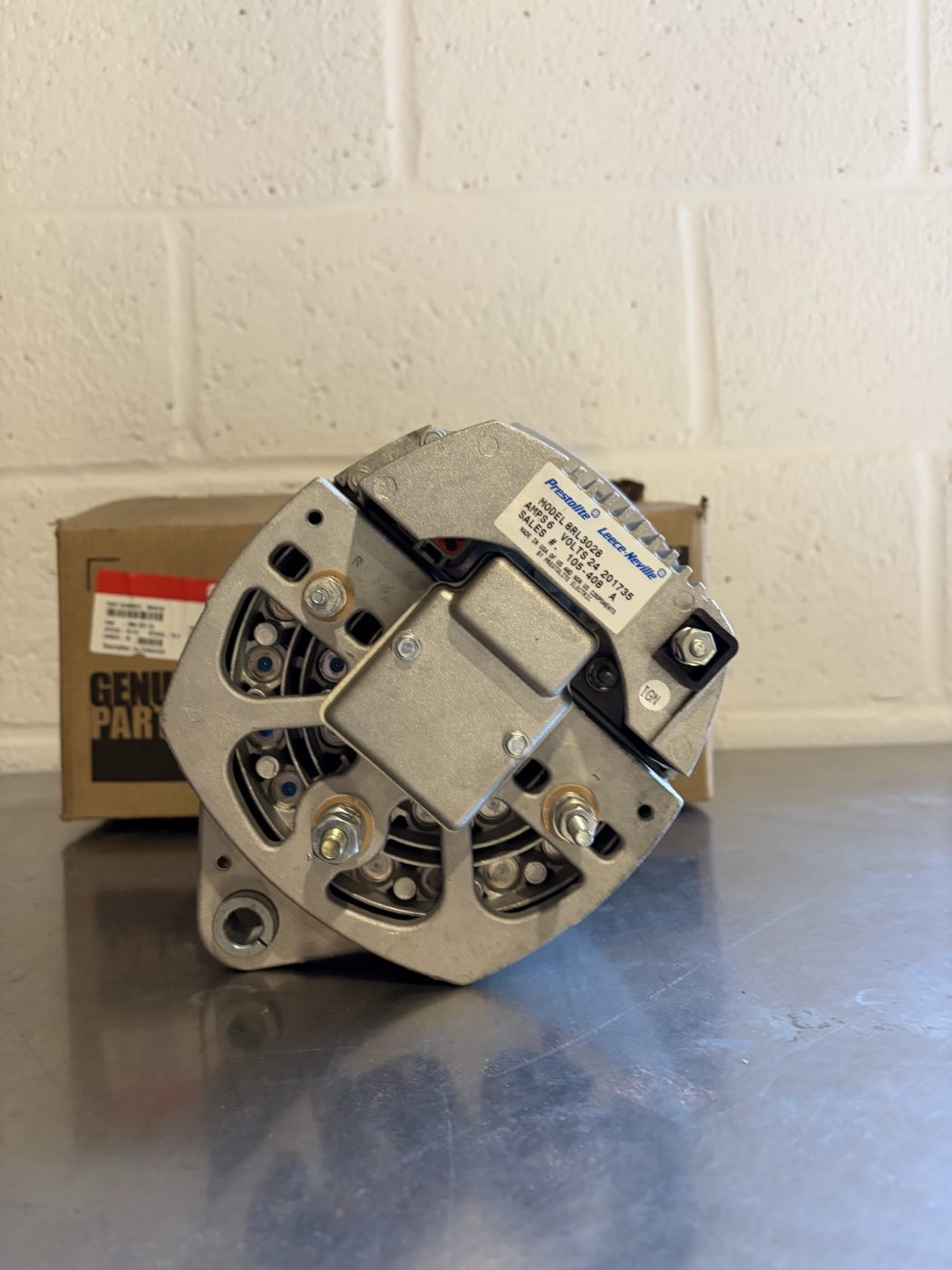

Genuine Cummins heavy-duty alternator, part number 3640732, a 24 volt, 150 amp Prestolite Leece-Neville unit — the Cummins label reads 3640732 / serial 201737 / 150 A / 24 V and the Prestolite plate reads Model 8RL3028, Sales No. 105-408 (see photos). The alternator is belt-driven off the engine and charges the batteries and supplies the 24 volt electrical system while the engine runs, so on a generator set it is the part replaced when the starting batteries stop holding charge or the alternator fails on its rectifier, regulator or bearings. 3640732 is the Cummins-supplied alternator for the K38 / K50 family — KTA38, KTA50, QSK38 and QSK50 generator sets and industrial engines — and has been superseded in the Cummins catalogue by 4372405, which this unit replaces directly. The pulley nut torque, 70 to 80 ft lb, is cast into the drive end. Condition: brand new and unused in its Cummins Genuine Parts box, dated 30 December 2023, 10.2 kg boxed. Price £549 plus VAT. Prestolite alternators are specified by mounting, pulley and ground polarity as well as output, so please confirm 3640732 against your engine serial number before ordering. In UK stock — call +44 7951 632187 or message on WhatsApp for shipping and availability.
Compatibility: fits Cummins KTA38 / QSK38 and Caterpillar Cat engines using 0R7942 / 1501935 — the full list of engines and interchangeable part numbers is on the Compatibility tab. Confirm against your engine serial number before ordering, or call us and we will check it with you.
Part number & references
For sale from UK stock. Quote any of these references when you call.
| Part number | 3640732 — also listed as Prestolite 3640732, Leece-Neville 3640732 |
|---|---|
| Brand | Cummins — also sold under Prestolite, Leece-Neville |

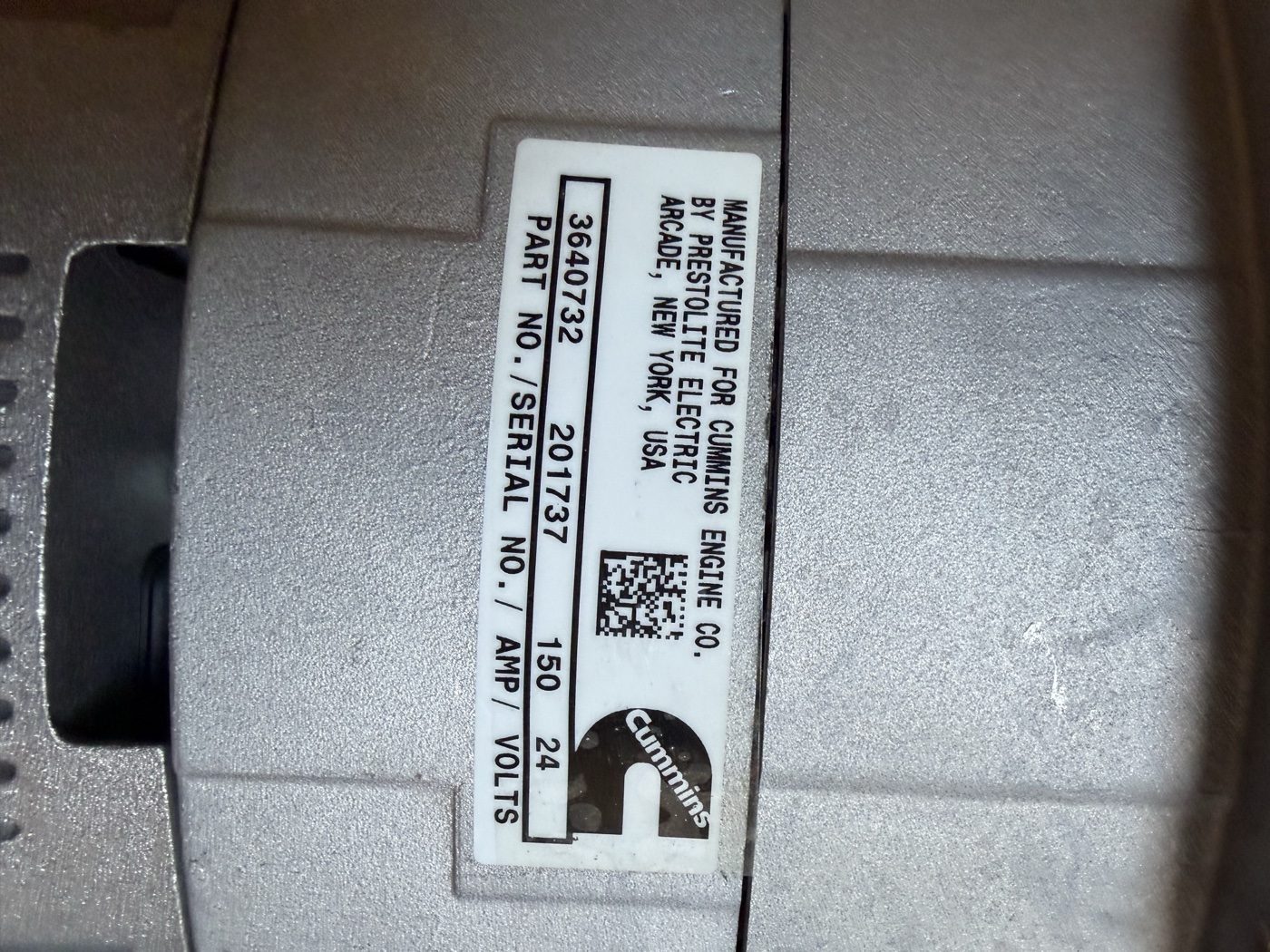

| Cummins label | Cummins 3640732 · serial 201737 · 150 A · 24 V |
| Alternate part number | Cummins 4372405 |
| Engine model | Cummins KTA38 / KTA50 / QSK38 / QSK50 |
Frequently asked questions
- Which engines does the Cummins 3640732 fit?
- It fits Cummins KTA38 / QSK38 and Caterpillar Cat engines using 0R7942 / 1501935. Insulated-return (isolated ground), clockwise rotation, M8 B+ stud, no pulley supplied. Only KTA38 / QSK38 fitment is documented; the KTA50 / QSK50 alternator is listed as 5282841 / 4381504. Fitment can change at engine serial-number breaks, so quote your engine serial number when you call and we will confirm it.
- Which part numbers are interchangeable with 3640732?
- The related numbers are 4372405 (superseded by, Cummins), 8SC3068V (maker's own number, Prestolite / Leece-Neville), 8SC3068VC (maker's own number, Prestolite / Leece-Neville), 110-431 (maker's own number, Prestolite / Leece-Neville), 8RL3028 (marked on the part, Prestolite / Leece-Neville), 0R7942 / 1501935 (cross-reference, Caterpillar), 8SC3160V (cross-reference, Prestolite / Leece-Neville) and 11204021 / F042308015 / 90059201 (cross-reference, Mahle / Bosch / Wilson). The Compatibility tab states each number's relation to this part — a supersession or cross-reference is the same part or its direct replacement; a marking or kit number is not a separate part.
- What is the Cummins 3640732?
- Genuine Cummins heavy-duty alternator, part number 3640732, a 24 volt, 150 amp Prestolite Leece-Neville unit — the Cummins label reads 3640732 / serial 201737 / 150 A / 24 V and the Prestolite plate reads Model 8RL3028, Sales No.
- Is the 3640732 new or used?
- This unit is brand new, supplied from UK stock.
- How much is it and how do I buy it?
- £549 ex works UK, excl. VAT. Call G Service Power on +44 7951 632187 or message on WhatsApp.
- Do you ship worldwide?
- Yes. In-stock items are dispatched next day and shipped worldwide with export packing and documentation.
